Miller STN

Nitro 7000 Series

  • All about productivity


    When it's high productivity you're after, look no further than the Miller Nitro. With a wide range of models, horsepower options, tank sizes, boom widths, four-wheel steering option, and precision technology available, there is sure to be an ideal Nitro for your demanding operation. Whether you are a large farm with lots of acres and an intensive spray application program, or a customer applicator with demanding customers and thousands of acres to spray each year, you can count on the Nitro to meet your needs. If it's precision application you require, we've got you covered. Need the high capacity? Our 1,400 and 1,600 gallon models are sure to please, and with models over 400 horse power, you'll have power to spare.

    The Nitro is not an average sprayer. It's a class-leader in so many ways. The over six feet of ground clearance allows for late season spraying in tall crops, ensuring critical yield-boosting applications can be made when you need them to be. The front cab and boom configuration gives you a command view of the entire boom. Watch every nozzle and navigate every obstacle in the field without ever looking back. And with the Nitro's high clearance and safe, pressurized, charcoal filtration SprayView cab, you'll never have to worry about air-borne chemical contamination in the operator environment.

    The Nitro's Quick-Attach versatility gives you the power of maximum asset utilization. With Quick-Attach, you can drop the spray boom in mere minutes and attach a grain swather, a corn detassler, or a Miller Injection Toolbar without having to incur the capital costs associated with running another power unit. Your bottom line will thank you for the efficiency you gain from your Nitro.

    View more

Cab

Comfort Zone - See your world without ever looking back



The new SprayView sprayer cab was designed specifically for the Nitro sprayer – NO COMPROMISES!   Panoramic view, full height windshield and higher door opening for tall operators.  Dual jointed tilt and telescoping steering column with foot pegs get the steering wheel to exactly where you like it.  Auto climate control, outside temperature gauge, stereo radio with a CD player, weather band, XM, blue tooth and remote radio controls. 3 monitoring screens so you have the information you need in front of you without having to constantly page through different screens – all standard.

Or step it up a notch with the SprayView Luxury cab with added features like heated and vented leather trimmed seat with auto weight adjust, leather trimmed training seat, leather wrapped steering wheel, rear camera, auto on/off headlights, rechargeable built in flash light, 110 volt outlet and even a refrigerator!

Sight lines are superior – you can see each and every tip spray pattern without straining, as well as your front tires while entering crop rows.

The sealed cab features a variable speed pressurization fan – only runs the speed it needs to maintain the proper pressure in the cab while keep fan noise to a minimum.  Charcoal primary filtration, recirculation filter and an electronic monitoring system.

Suspension

Nitro sprayers have a reputation for an exceptional ride and that ride has just gotten BETTER!!



With a 50/50 weight distribution and the Miller exclusive four-wheel independent Hydra-Link suspension, you will appreciate the smooth ride and minimum soil compaction. With all four wheels planted firmly on the ground, dropping a wheel in a mud hole and 'three-wheeling' is left to the competition as you pull through the most challenging field conditions with ease. Reduce stress and fatigue on the machine and the operator, and ensure a stable, smooth ride for the boom and precise tip-to-target applications.

New optional in cab suspension lowering system makes it quick and easy to lower the overall height of the sprayer for transporting on a truck, low shed doors or doing maintenance work.

Engine

Rear engine for outstanding weight distribution



Proven FPT reliability you can count on. The engines powering the Nitro Series sprayer are specifically tailored to meet your demanding requirements for reliability and power. All are electronically controlled and use the high-pressure Common Rail systems to ensure high torque rise.

With available engine sizes ranging from 369 hp (275 kw) and 412 hp (307 kw) we can supply power to match your terrain. The rear-mount engine provides not just better weight distribution, but easy access to engine components, all within convenient reach.

North American Nitro models are equipped with reliable FPT Tier 4B engines.  In areas of the world that Tier 4B is not required, we provide proven FPT Tier 3 versions.

Located behind the engine away from dirt and debris is the large “Single Pass” cooling system designed to allow for more efficient and cooler airflow through all four cores. This means the ambient temperature of the air passing through each core is the same, resulting in substantially better cooling capabilities.

The cooling fan is variable speed and only runs as fast as it has to keep the system at the correct operating temperature.  Saves horsepower and fuel, warms up quicker in cool weather and runs quitter.  In addition, you can equip your sprayer with an optional reversing fan to keep the intake screens clean in harsh conditions.

Drive System

Get power to the ground – where you need it



Horsepower is one thing, but getting it effectively to the ground, where you need it, is another. That is why the Nitro Series uses systems to do just that.

The 7000 series Nitro’s with the 8.7 liter FPT engines feature twin Danfoss electronically controlled, H1 hydrostatic pump system.  The final drives are equipped with Danfoss H1 series electronically controlled variable displacement piston drive motors and Farifield Torque-Hub® (C026 series) planetary final drives.  They are seamlessly integrated to provide optimum drive performance.  Features include full time traction control, integrated speed limiting, cruise control, engine anti-stall, engine over rev protection and much more.  Infinite speeds between 0 to 32 mph (0 to 51 kph).  4 wheel dynamic and 4 wheel parking brakes are internal, cooled by oil and are out of the external elements for long life operation.

The operator has the ability to easily program 4 working ranges to custom fit the speeds he wants to work at.

Spraying System

A spray configuration that's right for you

The Nitro 7000 series offers tank and boom options that are sure to increase your productivity.

Start with the right size product tank, you have the choice of either a 1200, 1400 or 1600 gallon capacity tanks made of stainless steel.  An electrically controlled 150 gallon rinse system is standard equipment to make cleaning the spray system simple.   You can take that one step further and order the optional AutoRinse system that takes the guess work out of cleaning the spray system.  With the Auto Rinse you can do the job from in the cab or at the fill station.

Our variable-speed Hypro® centrifugal pump operates only at the level it needs to deliver your target rate, saving horsepower and preserving pump life.   When it comes to the boom choices, no one offers more factory installed boom choices than Miller.  You can choose a MonoBeam boom design in sizes from 90/60, 100/60 or 120/70 foot widths (27/18, 30/18 or 36/21 m) or choose a Truss boom design from 120/73, 132/73 or 135/73 foot widths (36/22, 40/22 or 41/22 m).

IntelliSpray - We offer IntelliSpray, which is a system that maintains a constant droplet size as ground speed changes.  IntelliSpray also gives you turn compensation and optional individual nozzle control. An added benefit is almost instantaneous on/off at the headlands.

Spray-Air - Or take a look at our Spray-Air air assist boom that provides unmatched droplet control in addition to impressive canopy penetration all with using a minimal amount of carrier.  The Spray-Air system also has great versatility!   You can spray conventionally if so desired for products like liquid nitrogen or you can use the air system to shake the canopy open while spraying conventionally.  The right method for the problem you are trying to solve!

Precision Farming

Precision farming options to maximize your productivity

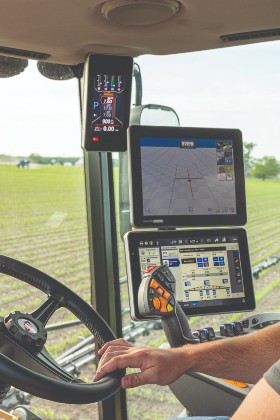

Your new Nitro can be factory equipped with a wide array of precision farming tools to maximize your application efficiency.

Choose a CNH SprayView® field computer with Nav II® steering to do your machine navigation and mapping.   Also controls the product system, section control and boom height control.  Coming soon – AutoSteer Headland Turning.  You can also add Telematics to transfer information back to the office along with machine performance information.

Or choose a Raven® Viper 4+ field computer that gives you features such as multiple product controlling, full mapping and data logging, AccuBoom automatic boom section control, AutoBoom automatic boom height control, as well as Raven’s new RS1 AutoSteer system with sub-meter to sub-inch accuracy options.

No Controller Option - You also have the option to choose no controller so you can add a Field Computer system that you may already be using on your farm – examples would be Ag Leader, Trimble or John Deere.

IntelliSpray - You can add IntelliSpray, which is a system that maintains a constant droplet size as ground speed changes.  IntelliSpray also gives you turn compensation and optional individual nozzle control (Viper only). An added benefit is almost instantaneous on/off at the headlands.

Row Crop Guidance - Miller has partnered with Reichhardt to provide a row feeler system to navigate through standing corn quickly and easily.

Specfications

**7285 / *7310
  • *Available in the North America and Australia
  • 7310 with Tier 4B engine in North America and Tier 2 engine in Australia
  • **Available in South America
  • 7285 with Tier 3 engine
  • Deluxe SprayView Cab
  • "Ultra Quiet" cab, variable speed pressurization fan, charcoal filtration (primary), recirculation filter (secondary), auto climate control, external temperature readout, AM/FM/WX w/CD , XM and blue tooth, with remote armrest controls and 4 speakers, 2-way tilt/telescope steering column with foot pegs, sun visor, cloth air ride seat with folding instructional seat, dual 7” (17.8 cm) chassis monitoring screens, overhead indicator panel for spray functions.  Audio jack, USB ports, phone charging ports and 12 volt power outlets.
  •
  • Luxury SprayView Cab
  • All standard Deluxe SprayView features PLUS:  Grammer Evolution leather trimmed operator seat with auto adjust air-ride suspension, heated and vented with power lumbar.  Leather trimmed instructional seat, leather wrap steering wheel, 12 volt cooler under instructional seat, rear camera, auto on/off head lights, integrated self-chargeable flash light, 110 volt power out let and a X-Grip for cell phone.
  • Engine / North America
  • *FPT® NEF 6 285 hp (212 kw) 310 hp (231 kw) bulge Tier 4B Requires DEF fluid
  • Engine / Australia
  • *FPT® NEF 6 – 275 hp (205 kw) 288 hp (214 kw) bulge – Tier 2
  • Engine / South America
  • **FPT® NEF 6 – 235 hp (175 kw) 282 hp (210 kw)  bulge – Tier 3
  • Alternator / Batteries
  • 200 Amp / three 1000 cca heavy duty batteries
  • Fuel Tank / DEF (if equipped)
  • 150 gallon (568 L) / 24 gallon (91 L)
  • Cooling System
  • Efficient Single Pass stacked top to bottom (not layered), variable speed hydraulically driven fan with automatic reversing option
  • Transmission
  • Hydrostatic drive with electronic controlled single Danfoss 165 cc, H1 series heavy duty pump
  • Auxiliary Hydraulic Circuit
  • 48 gpm (181.7 lpm) @ 3000 psi (20,684 kpa)
  • UltraFlo Hydraulic Pump - Optional
  • 48 gpm (181.7 lpm) @ 3000 psi (20,684 kpa)
  • Speed Ranges
  • 0 to 35 mph (0 to 56 kph) with 4 programmable speed ranges
  • Service Brake
  • 4-wheel dynamic internal wet disc and oil cooled
  • Park Brake
  • 4-wheel spring applied
  • Steering
  • Hydrostatic with two steering cylinders with heavy duty ball joints, no tie rods
  • Standard 2 - Wheel Steering
  • 18 feet (5.48 m)
  • Optional 4 - Wheel Steering
    • 18 feet (5.48 m) in 2 wheel steer mode
    • 13.5 feet (4.1 m( in 4 wheel steer mode
  • Tread Width / Fixed Axle
  • 120 inches (305 cm) with 320 or 380 tires
  • Tread Width / Auto Adjustment
  • 120 inch to 160 inch (305 to 406 cm) with 320 or 380 tires
  • HydraLink™ Suspension
  • Electronically controlled 4-wheel independent, full suspension travel of 20 inches (51 cm), hydraulic leveling/shock absorbers, auto-leveling for each leg
  • Crop Clearance
  • In cab variable height 72 to 78 inches (182.88 to 198.12 cm)
  • Product Tank Options
  • 1,000 or 1,200 gallon (3,785 or 4,542 L) stainless steel with 3 inch (7.62 cm) fill connection
  • Rinse System
  • Standard electric or optional AutoRinse.  150 gallon (568 L) poly tank and 2 inch (5.08 cm) fill connection
  • Product Pump - Standard
  • Hypro 9306C - 210 gpm @ 80psi (795 lpm @ 5.5 bar) capacity at the pump
  • Product Pump - Optional
  • High capacity Hypro 9307C - 300 gpm @ 80psi (1,135 lpm @ 5.5 bar)
  • Chemical Injection Option / Factory or field installed
  • Option of up to 3 injection pumps (high or low volume) and choice of up to four 50 gal (189 L) poly tanks.  Note: Requires 1000 (3,785 L) product tank
  • Foam Marker Option
  • Injection System - uses water from rinse tank - in-cab controls - 3 gallon (11.3 L) foam concentrate tank
  • Boom options / MonoBeam
  • 90/60, 100/60 or 120/70 foot widths (27/18, 30/18 or 36/21 m)
  • Boom options / Truss
  • 120/73, 132/73 or 135/73 foot widths (36/22, 40/22 or 41/22 m)
  • On/Off Valves or Boom Sections
    • 90 or 100 foot booms - choice of 5 or 10 on/off valves
    • 120 & 135 foot booms - 10 on/off valves
    • 132 foot boom - choice of 10 or 12 on/off valves
  • Nozzle Body Options for MonoBeam and Truss Boom
  • TeeJet 3 way, 3 plus 1 and 5 way
  • IntelliSpray Option
  • Available on MonoBeam and Truss booms.  Includes 36 virtual sections and turn compensation
  • Boom option / Spray-Air
  • 90/60, 100/60 or 120/73 foot widths (27/18, 30/18 or 36/22 m)
  • Boom Travel (transom)
  • 100 inches (254 cm)
  • Boom Lift Range
    • MonoBeam Boom - 17 to 117 inches (43.2 to 297.2 cm) with suspension set at 75 inches
    • Truss Boom - 25 to 125 inches (63.5 to 317.5 cm) with suspension set at 75 inches
  • AutoSteer Ready
  • Yes
  • Spray Controller Option / Factory installed
  • Raven Viper 4+ with RS1 steering control
  • Wheelbase
  • With crop clearance setting of 75 inches (190.5 cm) wheel base is 151 inches (383.5 cm)
  • Dimensions (Shipping)
    • Height / 153 inches (388.6 cm)
    • Width / MonoBeam boom - 163 inches (414 cm)
    • Width / Truss boom - 183 inches (464.8 cm)
    • Length / varies depending upon boom options
  • Shipping Weight (weights can and do vary depending upon options)
    • 7310 / 1,000 gallon / 2 wheel steer / 100 foot boom - 28,700 lbs. (13,018 kg)
    • 7310 / 1,000 gallon / 4 wheel steer / 100 foot boom - 29,700 lbs. (13,471 kg)
    • 7310 / 1,200 gallon / 2 wheel steer / 100 foot boom - 29,000 lbs. (13,154 kg)
    • 7310 / 1,200 gallon / 4 wheel steer / 100 foot boom - 30,000 lbs. (13,607 kg)
*7370 / **7380
  • *Available in the USA
  • Model with Tier 4B Engine
  • **Not Available in the USA
  • Model with Tier 3 Engine is not available in North America
  • SprayView Cab
  • "Ultra Quiet" cab, variable speed pressurization fan, charcoal filtration (primary), recirculation filter (secondary), auto climate control, external temperature readout, AM/FM/WX w/CD , XM and blue tooth, with remote armrest controls and 4 speakers, 2-way tilt/telescope steering column with foot pegs, sun visor, cloth air ride seat with folding instructional seat, dual 7” (17.8 cm) chassis monitoring screens, overhead indicator panel for spray functions.  Audio jack, USB ports, phone charging ports and 12 volt power outlets.
  • Premium SprayView Cab
  • All standard Deluxe SprayView features PLUS: Grammer Evolution leather trimmed operator seat with auto adjust air-ride suspension, heated and vented with power lumbar. Leather trimmed instructional seat, leather wrap steering wheel, 12 volt cooler under instructional seat, rear camera, auto on/off head lights, integrated self-chargeable flash light, 110 volt power out let and an X-Grip for cell phone.
  • Engines
    • *7370 – FPT® Cursor 9 – 8.7L Tier 4B – 328 hp / 369 bulge (244 kw / 275 bulge)
    • **7380 – FPT® Cursor 9 – 8.7L Tier 3 – 322 hp / 382 bulge (240 kw / 284 bulge)
  • Alternator
  • 200 Amp
  • Fuel Tank / DEF Tank
  • 150 gallon (568 L) / 24 gallon (91 L)
  • Cooling System
  • Efficient Single Pass "Stacked" (not layered), hydraulically driven fan with reverse option
  • Transmission
  • Hydrostatic drive with electronic controlled twin 130 cc Danfoss 165 cc, H1 series heavy duty pump
  • Auxiliary Hydraulic Circuit
  • 44 GPM (166.5L/min) @ 2500 psi (172.36 bar)
  • UltraFlo Hydraulic Pump Option
  • Independent 42 GPM (159 L/min) @ 2500 psi (172.36 bar)
  • Speed Ranges
  • 0 to 32 mph (0 to 51 kph) with 4 programmable speed ranges
  • Service Brake
  • 4-wheel dynamic internal wet disc and oil cooled
  • Park Brake
  • 4-wheel spring applied
  • Steering
  • Hydrostatic with two steering cylinders, no tie rods
  • Standard 2-Wheel Steering
  • 15' (4.5m) radius
  • Optional 4-Wheel Steering
    • 21' (6.4m) in 2 wheel steer mode
    • 15' (4.6m) in 4 wheel steer mode
  • Tread Width Adjustment
  • 120" to 160" (305 to 406 cm) hydraulic adjustment standard
  • HydraLink™ Suspension
    • 4-wheel independent, full suspension travel of 20" (51cm), hydraulic leveling/shock absorbers, auto-leveling for each leg
    • Optional suspension lowering system operated from in the cab
  • Crop Clearance
  • 74" or 76" (188 or 193 cm) varies with tire size
  • Product Tank Options
  • 1200, 1400, or 1600 gallon (4542, 5300, or 6056 L) stainless steel
  • Rinse System
    • 150 gallon (568 L) poly tank and 2" QuickFill connection
    • Electric in-cab controls
    • Optional Auto Rinse
  • Product Pump Standard
  • Hypro 9306C - 210 gpm @ 80psi (795 L/min @ 5.5 bar) capacity at the pump
  • Product Pump Option
  • High capacity Hypro 9307C - 300 gpm @ 80psi (1,135 L/min @ 5.5 bar)
  • Foam Marker Option
  • Injection System - uses water from rinse tank - in-cab controls - 3 gallon (11.3 L) foam concentrate tank
  • Boom Options / MonoBeam
  • 90/60 or 100/60 foot widths (27/18 or 30/18 m)
  • 120' / 36m MonoBeam Boom Option
  • 120/70 foot width (36/22 m)
  • Boom Options / Truss
  • 120/73, 132/73, 135/73 foot widths (36/22, 40/22 or 41/22 m)
  • On/Off valves or Boom Sections
    • 90 or 100 foot booms – choice of 5 or 10 on/off valves
    • 120 and 135 foot booms – 10 on/off valves
    • 132 foot boom – choice of 10 or 12 on/off valves
  • Nozzle body options for MonoBeam and Truss booms
  • TeeJet 3 way, 3 plus 1 and 5 way
  • IntelliSpray (Not available with Spray-Air booms)
  • Available on MonoBeam or Truss booms.  Includes 36 virtual sections and turn compensation
  • Spray-Air™ Truss Boom Options
  • 90/60, 100/60 or 120/73 foot widths (27/18, 30/18 or 36/22 m)
  • Boom Travel (transom)
  • 96 inches (243.8 cm)
  • Boom Lift Range
    • MonoBeam Boom from 22" (56cm) to 118" (300cm)
    • Truss Boom from 30" (76.2cm) to 126" (320cm)
  • Spray Controller Options / Factory Installed
  • CNH SprayView® with Nav II steering control, Raven® Viper 4+ with RS1 steering control or no controller
  • Wheelbase
  • 177" (450cm)
  • Dimensions (Shipping)
  • H: 160" (406cm) / W: 145" (368cm) / L: 363" (922cm)
*7410 /**7420
  • *Available in the USA
  • Model with Tier 4B Engine
  • **Not Available in the USA
  • Model with Tier 3 Engine is not available in North America
  • SprayView Cab
  • "Ultra Quiet" cab, variable speed pressurization fan, charcoal filtration (primary), recirculation filter (secondary), auto climate control, external temperature readout, AM/FM/WX w/CD , XM and blue tooth, with remote armrest controls and 4 speakers, 2-way tilt/telescope steering column with foot pegs, sun visor, cloth air ride seat with folding instructional seat, dual 7” (17.8 cm) chassis monitoring screens, overhead indicator panel for spray functions.  Audio jack, USB ports, phone charging ports and 12 volt power outlets.
  • Premium SprayView Cab
  • All standard Deluxe SprayView features PLUS:  Grammer Evolution leather trimmed operator seat with auto adjust air-ride suspension, heated and vented with power lumbar.  Leather trimmed instructional seat, leather wrap steering wheel, 12 volt cooler under instructional seat, rear camera, auto on/off head lights, integrated self-chargeable flash light, 110 volt power out let and a X-Grip for cell phone.
  • Engines
    • *7410 – FPT® Cursor 9 – 8.7L Tier 4B – 382 hp /  412 bulge (284 kw / 307 bulge)
    • **7420 – FPT® Cursor 9 – 8.7L Tier 3 – 373 hp / 434 bulge (278 kw / 323 bulge)
  • Alternator
  • 200 Amp
  • Fuel Tank / DEF Tank
  • 150 gallon (568 L) / 24 gallon (91 L)
  • Cooling System
  • Efficient Single Pass "Stacked" (not layered), hydraulically driven fan with reverse option
  • Transmission
  • Hydrostatic drive with electronic controlled twin 130 cc Danfoss 165 cc, H1 series heavy duty pump
  • Auxiliary Hydraulic Circuit
  • 44 GPM (166.5L/min) @ 2500 psi (172.36 bar)
  • UltraFlo Hydraulic Pump Option
  • Independent 42 GPM (159 L/min) @ 2500 psi (172.36 bar)
  • Speed Ranges
  • 0 to 32 mph (0 to 51 kph) with 4 programmable speed ranges
  • Service Brake
  • 4-wheel dynamic internal wet disc and oil cooled
  • Park Brake
  • 4-wheel spring applied
  • Steering
  • Hydrostatic with two steering cylinders, no tie rods
  • Standard 2-Wheel Steering
  • 15' (4.5m) radius
  • Optional 4-Wheel Steering
    • 21' (6.4m) in 2 wheel steer mode
    • 15' (4.6m) in 4 wheel steer mode
  • Tread Width Adjustment
  • 120" to 160" (305 to 406 cm) hydraulic adjustment standard
  • HydraLink™ Suspension
    • 4-wheel independent, full suspension travel of 20" (51cm), hydraulic leveling/shock absorbers, auto-leveling for each leg
    • Optional suspension lowering system operated from in the cab
  • Crop Clearance
  • 74" or 76" (188 or 193 cm) varies with tire size
  • Product Tank Options
  • 1200, 1400, or 1600 gallon (4542, 5300, or 6056 L) stainless steel
  • Rinse System
    • 150 gallon (568 L) poly tank and 2" QuickFill connection
    • Electric in-cab controls
    • Optional Auto Rinse
  • Product Pump Standard
  • Hypro 9306C - 210 gpm @ 80psi (795 L/min @ 5.5 bar) capacity at the pump
  • Product Pump Option
  • High capacity Hypro 9307C - 300 gpm @ 80psi (1,135 L/min @ 5.5 bar)
  • Foam Marker Option
  • Injection System - uses water from rinse tank - in-cab controls - 3 gallon (11.3 L) foam concentrate tank
  • Boom Options / MonoBeam
  • 90/60 or 100/60 foot widths (27/18 or 30/18 m)
  • 120' / 36m MonoBeam Boom Option
  • 120/70 foot width (36/22 m)
  • Boom Options / Truss
  • 120/73, 132/73, 135/73 foot widths (36/22, 40/22 or 41/22 m)
  • On/Off valves or Boom Sections
    • 90 or 100 foot booms – choice of 5 or 10 on/off valves
    • 120 and 135 foot booms – 10 on/off valves
    • 132 foot boom – choice of 10 or 12 on/off valves
  • Nozzle body options for MonoBeam and Truss booms
  • TeeJet 3 way, 3 plus 1 and 5 way
  • IntelliSpray (Not available with Spray-Air booms)
  • Available on MonoBeam or Truss booms.  Includes 36 virtual sections and turn compensation
  • Spray-Air™ Truss Boom Options
  • 90/60, 100/60 or 120/73 foot widths (27/18, 30/18 or 36/22 m)
  • Boom Travel (transom)
  • 96 inches (243.8 cm)
  • Boom Lift Range
    • MonoBeam Boom from 22" (56cm) to 118" (300cm)
    • Truss Boom from 30" (76.2cm) to 126" (320cm)
  • Spray Controller Options / Factory Installed
  • CNH SprayView® with Nav II steering control, Raven® Viper 4+ with RS1 steering control or no controller
  • Wheelbase
  • 177" (450cm)
  • Dimensions (Shipping)
  • H: 160" (406cm) / W: 145" (368cm) / L: 363" (922cm)
